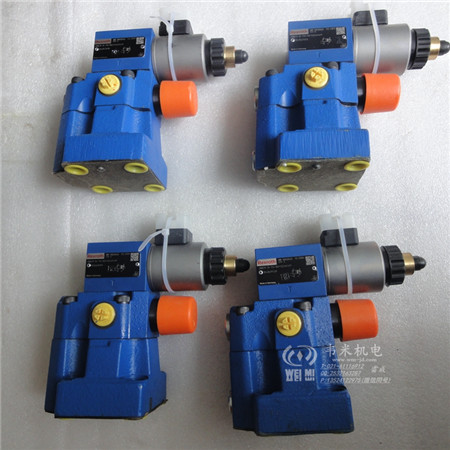

Rexroth直动式比例溢流阀0811402001 DBETBX-1X/250G24-37Z4M-38

比例溢流阀工作原理是：比例溢流阀通过弹簧力的大小改变溢流压力大大小变化，比例电磁铁作用在弹簧上的力可以按比例调整，所以就输入信号变化比例溢流阀的压力也会变化

普通溢流阀与比例溢流阀一样，都有一个阀芯，阀芯的一端是液压油产生的压力，另一端是机械力。普通溢流阀通过调节弹簧力，来调整液压压力。而比例溢流阀是电磁铁直接产生推力，作用在阀芯上，电磁铁上的输入电压可以在0-24伏之间变化，产生的推力就随之变化，从而得到连续变化的液压压力。

因为比例电磁铁的推力不大，所以直动式比例溢流阀的流量很小，压力70兆帕时，流量只有1升/分钟左右。需要大流量比例阀的时候，要把这个比例阀做先导阀，下面还要配一个大通径的溢流阀。

Rexroth直动式比例溢流阀DBEP6C06-1X/25AG24K4M

型号 (Z)DBE and (Z)DBEE

比例溢流阀，先导式

规格6

安装面按DIN 24340 A型和ISO 4401

用于限制系统压力的阀

比例电磁铁操作

底板安装，DBE和DBEE型

叠加型，ZDBE和ZDBEE型

集成电控器（OBE），用于DBEE and ZDBEE型

线性压力/指令值特性曲线

型号 DBE(M) 和 DBE(M)E

比例溢流阀，先导式

规格10至32

安装面按DIN 24340 E型

用于限制系统压力的阀

比例电磁铁操作

底板安装

DBEM 和 DBEME型的最大溢流功能

DBEE 和 DBEME型的集成电控器（OBE）

线性压力/指令值特性曲线（规格10和25）

型号 DBE

比例溢流阀，先导式

规格6和10

规格6：安装面按ISO 4401

规格10：安装面按 ISO 5781-AG-06-2-A

用于限制系统压力的阀

DBEBE型的集成电控器（OBE）

比例电磁铁操作

通过电磁铁电枢位置进行调节

型号 KBVS

比例溢流阀，先导式（高性能）

规格3

用于限制系统压力的先导阀

比例电磁铁操作

有中心螺纹和可拆卸线圈的比例电磁铁

起螺丝插装阀

在电控器上外部对指令值/压力特性曲线进行很好的平衡

如果遇到断电，可得到最小（"A"）或最大("B")压

型号 DBEP

比例溢流阀，直动式

规格6

安装面按DIN 24340 A型和ISO 4401

系统限压阀

比例电磁铁操作

底板安装

型号 DBET 和 DBETE

比例溢流阀，直动式

规格6

安装面按DIN 24340 A型和ISO 4401

系统限压阀

比例电磁铁操作

底板安装

用于DBETE型的集成电控器（OBE）

线性压力/指令值特性曲线

提供起螺丝插装阀

R910803236 PROP.MAGNET24V.SCHR.O.NOTHANDBETAET.

R901104476 DBETE-6X/420YG24K31A1V

R901103801 DBETE-6X/200YG24K31F1V

R901065548 DBET-6X/200YG24K4V

R901064677 DBETE-6X/200YG24K31A1V

R901064278 DBETE-6X/315YG24K31A1V

R901045246 DBETE-6X/315G24K31F1V

R901045243 DBETE-6X/200G24K31F1V

R901029970 DBETE-6X/350G24K31A1V

R901029969 DBETE-6X/315G24K31A1V

R901029968 DBETE-6X/200G24K31A1V

R901029967 DBETE-6X/100G24K31A1V

R901029966 DBETE-6X/50G24K31A1V

R900701297 DBET-5X/400G24N9K4V-8

R900693432 KEGEL3,1-17,0X35,6Z10,4/5,8DBETR

R900626224 SPINDELDBET-50/315G24-7

R900626223 SPINDELDBET-50/200G24-7

R900626222 SPINDELDBET-50/100G24-7

R900626221 SPINDELDBET-50/50G24-7

R900625507 SPINDELDBET-5X/400G24-8

R900618040 DBET-5X/200YG24K4M-1

R900599352 DBETR-1X/315G24K4V-437

R900590105 DBETR-1X/350G24K4V-409

R900581719 DBETR-1X/80G24K4V

R900574605 DBETE-5X/315G24K31M-1

R900573629 DBET-5X/315G24K4M-1

R900573528 DBETE-5X/250G24K31M

R900573109 DBETE-5X/250G24K31M-1

R900565514 DBETE-5X/315YG24K31M-1

R900560201 DBETE-5X/100G24K31M

R900547749 DBET-5X/315YG24K4M-1

R900547462 DBETE-5X/315G24NK31M-1

R900546617 DBET-5X/315G24K4M

R900544648 EINBAUSATZDBET-51/V-16

R900534430 DBETE-5X/315YG24K9M-1

R900528808 DBETE-5X/50G24K31M

R900528497 DBETR-1X/180G24K4V-575

R900504170 DBETB-1X/230G24K4M-551

R900502817 DBETR-1X/230G24K4M-409

R900496451 DBETR-1X/25G24K4M

R900491698 DBETR-1X/180G24K4M

R900486398 DBETB-1X/180G24K4M

R900485944 DBETR-1X/315G24K4M

R900483985 DBETR-1X/230G24K4M-381

R900474285 DBETR-1X/180G24K4M-381

1817A02074 HANDBETAETIGUNG

0811V02006 DBETBX-1X/180G24-16K4M

0811T02017 DBETX-1X/180G24-8NZ4M

0811A02017 DBETX-1X/180G24-8NZ4M

0811A02003 DBETBX-1X/180G24-37Z4M

0811402142 DBETBEX-1X/180G24K31A1V

0811402141 DBETBEX-1X/315G24K31F1M

0811402140 DBETBEX-1X/80G24K31F1M

0811402075 DBETBEX-1X/180G24K31F1M

0811402074 DBETBEX-1X/315G24K0B5M

0811402073 DBETBEX-1X/250G24K31A1M

0811402072 DBETBEX-1X/80G24K31A1M

0811402071 DBETBEX-1X/180G24K31A1M

0811402070 DBETBEX-1X/315G24K31A1M

0811402039 DBETX-1X/180G24-25NZ4M-36

0811402038 DBETX-1X/25G24-25NZ4M-36

0811402037 DBETX-1X/350G24-25NZ4M

0811402036 DBETX-1X/50G24-8NZ4M

0811402035 DBETX-1X/250G24-25NZ4M

0811402034 DBETX-1X/50G24-25NZ4M

0811402032 DBETX-1X/315G24-25NZ4M

0811402031 DBETX-1X/180G24-25NZ4M

0811402030 DBETX-1X/80G24-25NZ4M

0811402028 DBETX-1X/250G24-8NZ4M-34

0811402027 DBETX-1X/250G24-8NZ4M-35

0811402026 DBETX-1X/180G24-8NZ4M-34

0811402024 DBETX-1X/250G24-25NZ4M-39

0811402023 DBETFX-1X/80G24-27NZ4M

0811402022 DBETFX-1X/180G24-27NZ4M

0811402021 DBETFX-1X/250G24-27NZ4M

0811402020 DBETFX-1X/315G24-27NZ4M

0811402019 DBETX-1X/250G24-8NZ4M

0811402018 DBETX-1X/80G24-8NZ4M

0811402016 DBETX-1X/315G24-8NZ4M

0811402015 DBETBX-1X/80G24-16Z4M

0811402014 DBETBX-1X/230G24-16Z4M

0811402013 DBETBX-1X/28G24-37Z4M

0811402011 DBETBX-1X/25G24-16Z4M

0811402007 DBETBX-1X/80G24-37Z4M-38

0811402005 DBETBX-1X/315G24-37Z4M-38

0811402004 DBETBX-1X/315G24-37Z4M

0811402001 DBETBX-1X/250G24-37Z4M-38

0811104083 DBETBX-1X/315G24-16Z4M

0811104082 DBETBX-1X/180G24-16Z4M-37

R961003039 DICHTUNGSSATZDBET.-6X/.V

R901108319 DBET-6X/420G24K4V

R901105513 DBET-5X/350G24K4V-1

R901104476 DBETE-6X/420YG24K31A1V

R901103801 DBETE-6X/200YG24K31F1V

R901093993 DBETE-6X/200G24K31A1M

R901078181 DBET-5X/150G24K4M-32

R901065549 DBET-6X/100YG24K4V

R901065548 DBET-6X/200YG24K4V

R901065547 DBET-6X/315YG24K4V

R901065546 DBET-6X/350YG24K4V

R901065545 DBET-6X/50YG24K4V

R901064677 DBETE-6X/200YG24K31A1V

R901064278 DBETE-6X/315YG24K31A1V

R901064548 DBETE-6X/350YG24K31A1V

R901064545 DBETE-6X/100YG24K31A1V

R901064544 DBETE-6X/50YG24K31A1V

R901049755 DBETE-5X/100YG24K31M-1

R901048602 DBETE-6X/50G24K31A1V=DE

R901045248 DBETE-6X/350G24K31F1V

R901045246 DBETE-6X/315G24K31F1V

R901045243 DBETE-6X/200G24K31F1V

R901045240 DBETE-6X/50G24K31F1V

R901039512 DBETE-6X/250G24K31A1V

R901029970 DBETE-6X/350G24K31A1V

R901029969 DBETE-6X/315G24K31A1V

R901029968 DBETE-6X/200G24K31A1V

R901029967 DBETE-6X/100G24K31A1V

R901029966 DBETE-6X/50G24K31A1V

R901018624 DBETE-5X/100G24K31M-1

R901000848 DBET-6X/350G24K4V

R901000847 DBET-6X/315G24K4V

R901000846 DBET-6X/200G24K4V

R901000845 DBET-6X/100G24K4V

R901000842 DBET-6X/50G24K4V

R900978782 DBET-5X/350YG24N9K4V-1

R900974364 DBET-3X/50YG24K4

R900973915 DBETE-5X/200G24K31V

R900973271 DBET-5X/200G24K4M-27

R900972959 DBET-5X/200G24K4V-21

R900972363 DBETE-5X/350YG24K31M-1

R900971378 DBET-5X/200G24N9K4M-1

R900971368 DBET-5X/315G24K4M-27

R900971367 DBET-5X/350G24K4M-27

R900971366 DBETE-5X/315G24K31V-27

R900971365 DBETE-5X/350G24K31M-27

R900971364 DBETE-5X/315G24K31M-27

R900971362 DBET-5X/200G24K4V-27

R900970002 DBET-5X/200G24NK4V

R900969500 DBET-5X=315G24K4M=DE

R900969499 DBETE-5X=50G24K31M=DE

R900969498 DBETR-1X=80G24K4M=DE

R900969496 DBETRE-2X=180G24K31A1M=DE

R900969494 DBETR-1X=180G24K4M=DE

R900969435 DBET-3X/315YG24K4V

R900969418 DBETRE-2X/315G24K31A1M

R900969417 DBETRE-2X/250G24K31A1M

R900969416 DBETRE-2X/180G24K31A1M

R900969082 DBET-5X/400G24NK4M-8

R900967885 DBET-5X/50G24K4M-1

R900967018 DBETE-5X/200YG24K31M-1

R900966782 DBETRE-2X/80G24K31A1M

R900965060 DBETE-5X/315G24N9K31M-1

R900963886 DBET-3X/315G24K4V

R900963709 DBET-3X/50G24K4

R900962802 DBETE-5X/200G24K31M-1

R900962559 DBET-5X/400G24N9K4M-8

R900960721 DBET-5X/100G24K4M-1

R900960180 DBET-5X/315G24NK4V-1

R900959742 DBETE-5X/350G24NK31M

R900959671 DBET-3X/315G24K4

R900959516 DBET-5X/200YG24N9K4M-1

R900959424 DBET-3X/50G24NK4-271

R900959324 DBET-5X/100G24NK4M-1

R900959153 DBET-5X/350YG24NK4M-1

R900957207 DBET-5X/50G24K4V

R900956010 DBET-5X/50G24NK4V

R900954706 DBETE-5X/350G24K31M

R900954438 DBETR-1X/30G24K4M

R900953316 DBETE-5X/200G24NK31M-1

R900952257 DBET-5X/350G24N9K4M

R900951964 DBET-5X/100YG24K4M-1

R900951869 DBET-5X/100G24K4M

R900951263 DBET-5X/315G24N9K4M

R900950428 DBET-5X/350G24NK4V

R900950145 DBETE-5X/100G24NK31M-1

R900949782 DBETE-5X/315YG24NK31M-1

R900947939 DBETE-5X/350G24K31V

R900947832 DBET-5X/315G24K4V

R900947736 DBET-5X/400YG24NK4M-14

R900946670 DBETE-5X/200G24K31M

R900946572 DBETE-5X/315G24NK31M

R900946114 DBET-5X/350G24K4M-1

R900941511 DBET-5X/400YG24N9K4M-8

R900940831 DBETE-5X/350G24NK31M-1

R900940209 DBET-5X/350G24NK4M-1

R900940131 DBET-5X/315G24NK4M-1

R900939742 DBET-5X/400YG24K4M-8

R900939741 DBET-5X/350YG24N9K4M-1

R900939696 DBET-5X/350YG24K4M-1

R900939222 DBET-5X/315G24K4V-1

R900936987 DBETE-5X/315G24K31M

R900935342 DBET-3X/315G24K4-152

R900931681 DBETE-5X/315G24K31M-20

R900929677 DBET-5X/200G12K4M-1

R900929676 DBET-5X/315G12K4M-1

R900925549 DBET-5X/100YG24NK4M-1

R900925344 DBET-5X/350G24K4M

R900925024 DBET-5X/315G24NK4M

R900924890 DBET-5X/100G24NK4V

R900923756 DBET-5X/50G24NK4M

R900923565 DBET-5X/200G24NK4M

R900923490 DBET-5X/350G24NK4M

R900922440 DBET-5X/400G24K4M-8

R900921742 DBETR-1X/350G24K4M-437

R900919362 DBET-5X/315YG24NK4M-1

R900919361 DBET-5X/315G24N9K4M-1

R900918284 DBETE-5X/200G24NK31M

R900917729 DBET-5X/200G24K4M-1

R900917194 DBET-5X/200G24N9K4M

R900916254 DBET-5X/100G24NK4M

R900916253 DBET-5X/200G24K4M

R900916252 DBET-5X/50G24K4M

R900913077 DBETE-5X/350G24K31M-1

R900912278 DBETR-1X/230G24K4M-677

R900906827 DBET-5X/315YG24NK4V-1

R900882173 KEGEL2,0-9,1X18DBETRE-20/315/350

R900767780 DBETRE-2X/30G24K31A1M

R900765153 DBET-5X/200G24K4V

R900755055 DBETE-5X/315G24K31V

R900746441 DBETRE-2X/350G24K31A1M

R900737318 VENTILSITZ2,06-11,07X12,9DBET-6X/200

R900736458 DBET-5X/100G24K4M-27

R900728287 DBET-5X/400YG24K4M-14

R900722059 DBETRE-2X=180G24K31A1M-1=DE

R900712726 DBETE-5X/100YG24NK31M-1

R900708194 DBETE-5X/200YG24NK31M-1

R900708065 DBET-5X/50YG24K4M-1

R900705259 DBET-5X/200G24K4V-22

R900391822 DBETR-1X/315G24K4M-437

R900373877 DBETR-1X/315G24K4V-409

R900372971 DBETR-1X/180G24K4M-437

R900370146 DBETR-1X/230G24K4M

R900357796 DBETR-1X/315G24K4M-409

R900357795 DBETR-1X/180G24K4M-409

R900353691 DBETR-1X/315G24K4M-381

R900352424 DBETR-1X/350G24K4M

R900348532 DBETB-1X/80G24K4M

R900348531 DBETB-1X/230G24K4M

R900336342 DBETR-1X/180G24K4V

R900334966 DBETR-1X/80G24K4M

R900332919 DBETR-1X/315G24K4V

R900969416 DBETRE-2X/180G24K31A1M

R900916252 DBET-5X/50G24K4M

R900313963 DICHTUNGSSATZDBETR-1X/

R900313899 DICHTUNGSSATZLFA63DBE/DBETR-6X/7X

R900313897 DICHTUNGSSATZLFA50DBE/DBETR-6X/7X

R900313767 DICHTUNGSSATZDBETR/DBETB-1X/V

R900313765 DICHTUNGSSATZDBEC6.-5X/DBET.-5X/V

R900313764 DICHTUNGSSATZDBEC6.-5X/DBET.-5X/

R900249079 DBET-3X/200G24K4

R900247337 DBETR-1X/350G24K4V-437

R900195093 SPINDELDBET-5X/150G24SO2

R900187193 VENTILSITZDBETR-1X/350

R900182529 SPINDELDBET-52/350

R901000848 DBET-6X/350G24K4V

R901000847 DBET-6X/315G24K4V

R901000846 DBET-6X/200G24K4V

R901000842 DBET-6X/50G24K4V

R900546617 DBET-5X/315G24K4M

R900370146 DBETR-1X/230G24K4M

R900334966 DBETR-1X/80G24K4M

0811402073 DBETBEX-1X/250G24K31A1M

0811402071 DBETBEX-1X/180G24K31A1M

0811402036 DBETX-1X/50G24-8NZ4M

0811402031 DBETX-1X/180G24-25NZ4M

0811402030 DBETX-1X/80G24-25NZ4M

0811402019 DBETX-1X/250G24-8NZ4M

0811402018 DBETX-1X/80G24-8NZ4M

0811402017 DBETX-1X/180G24-8NZ4M

0811402016 DBETX-1X/315G24-8NZ4M

0811402004 DBETBX-1X/315G24-37Z4M

0811402003 DBETBX-1X/180G24-37Z4M

0811402001 DBETBX-1X/250G24-37Z4M-38

比例溢流阀的主要作用：

定压溢流作用：在定量泵节流调节系统中，定量泵提供的是恒定流量。当系统压力增大时，会使流量需求减小。此时溢流阀开启，使多余流量溢回油箱，保证溢流阀进口压力，即泵出口压力恒定（阀口常随压力波动开启）。

稳压作用：比例溢流阀串联在回油路上，溢流阀产生背压，运动部件平稳性增加。

系统卸荷作用：在比例溢流阀的遥控口串接溢小流量的电磁阀，当电磁铁通电时，溢流阀的遥控口通油箱，此时液压泵卸荷。溢流阀此时作为卸荷阀使用。

安全保护作用：系统正常工作时，阀门关闭。只有负载超过规定的极限（系统压力超过调定压力）时开启溢流，进行过载保护，使系统压力不再增加（通常使溢流阀的调定压力比系统最高工作压力高10%～20%）。

实际应用中一般有：作卸荷阀用，作远程调压阀，作高低压多级控制阀，作顺序阀，用于产生背压（串在回油路上）。

溢流阀一般有两种结构：1、直动型溢流阀。2、先导式溢流阀。

对溢流阀的主要要求：调压范围大，调压偏差小，压力振摆小，动作灵敏，过载能力大，噪声小。
